等离子体活化水在种子播前处理中的应用

朱童; 张頔; 汤红卫; 巩彪; 仲崇山

doi:10.19998/j.cnki.2095-1795.2022.10.005

等离子体活化水在种子播前处理中的应用

doi: 10.19998/j.cnki.2095-1795.2022.10.005

朱童^1,,
张頔¹,
汤红卫^1,,
巩彪²,
仲崇山¹

1.
中国农业大学信息与电气工程学院，北京 100083
2.
山东农业大学园艺科学与工程学院，山东泰安 271018

详细信息

作者简介:
朱童，硕士生，主要从事等离子体活化水、等离子体污水处理研究　E-mail：SY20213081638@cau.edu.cn

汤红卫，通信作者，博士，副教授，主要从事等离子体固氮、等离子体种子处理、电力系统及其自动化研究E-mail：tang7643@163.com

中图分类号: O539
计量
- 文章访问数: 287
- HTML全文浏览量: 15
- PDF下载量: 23
- 被引次数: 0
出版历程
- 收稿日期: 2022-07-26
- 修回日期: 2022-08-31
- 出版日期: 2022-10-20

Application of Plasma Activated Water in Seed Sowing Pretreatment

1.
School of Information and Electrical Engineering，China Agricultural University，Beijing 100083，China
2.
College of Horticulture Science and Engineering，Shandong Agricultural University，Tai'an Shandong 271018，China

摘要

摘要:
种子播前处理具有打破种子休眠、降低病虫害和促进作物生长的作用，是农业生产的重要环节。等离子体活化水（PAW）种子处理作为一种新兴的物理种子处理技术，因绿色环保、操作简单和批量均匀处理等优点而受到广泛关注。PAW富含各类活性粒子，具有优异的生物活性，能够促进种子萌发、减少种子表面病菌，应用前景广阔。在阐述等离子体种子处理技术原理的基础上，综述了液相等离子体放电机理、PAW生产系统及存储方式，并探讨了PAW在促萌发和表面消毒方面的机理，总结了PAW在农业生产中的优势和局限，旨在为PAW种子处理的应用和推广提供参考。
- 等离子体活化水 /
- 种子预处理 /
- 种子萌发 /
- 杀菌消毒
Abstract:
Seed sowing pretreatment is essential for agriculture, including seed dormancy breaking, disease sanitation, and plant growth promotion．As an emerging physical seed treatment technology, plasma-activated water seed treatment has gathered increasing attention for its advantages of simple operation and batch processing solution．PAW is rich in species with superior biological activity, facilitating seed germination and inactivating microorganisms on seed surface．Therefore, PAW seed pretreatment technology is promising to be put into large-scale practice as an environment-friendly technology in the future．On basis of expounding principle of plasma seed treatment technology, mechanism of liquid phase plasma discharge, PAW production system and storage mode was summarized, mechanism of PAW in promoting germination and surface disinfection was discussed, advantages and limitations of PAW in agricultural production were summarized．It aims to provide reference for application and promotion of PAW seed treatment．
- plasma activated water /
- seed sowing pretreatment /
- seed germination /
- sterilization and disinfection

HTML全文

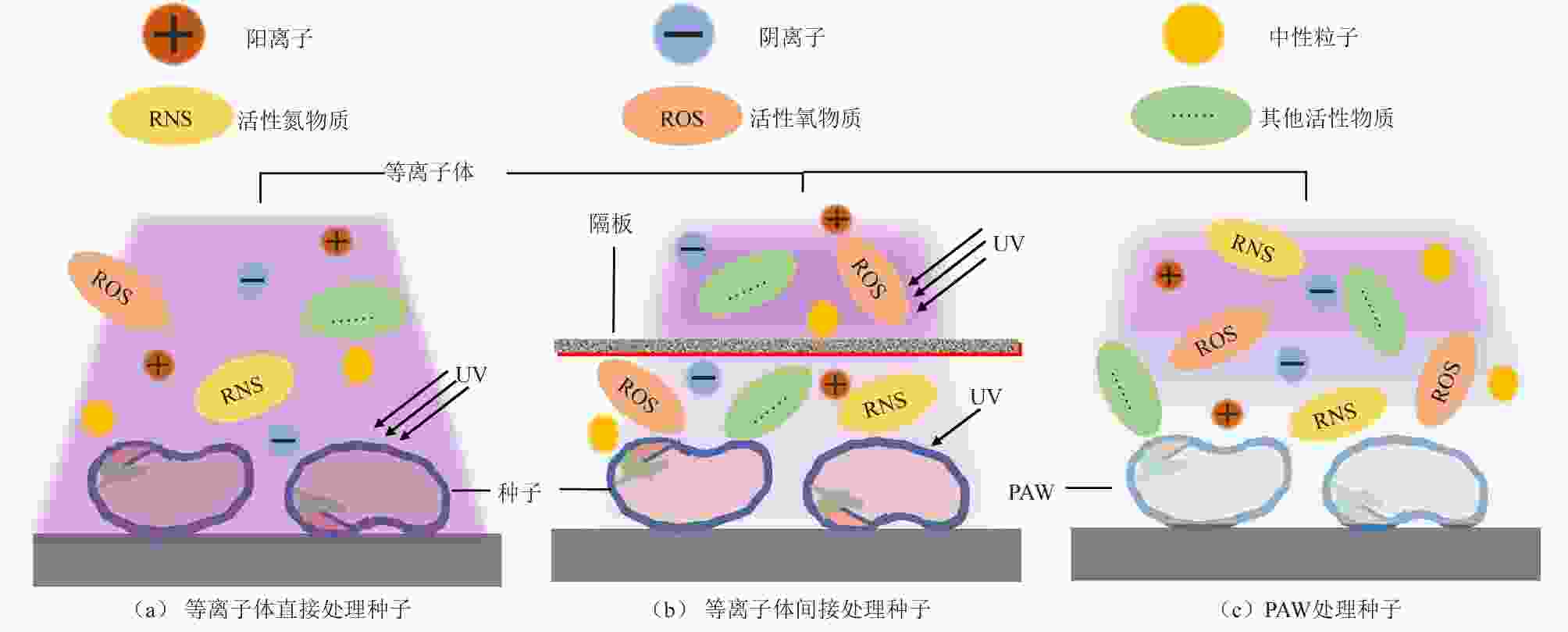

图 1 等离子体种子处理技术

Figure 1. Plasma seed treatment technology

下载: 全尺寸图片幻灯片

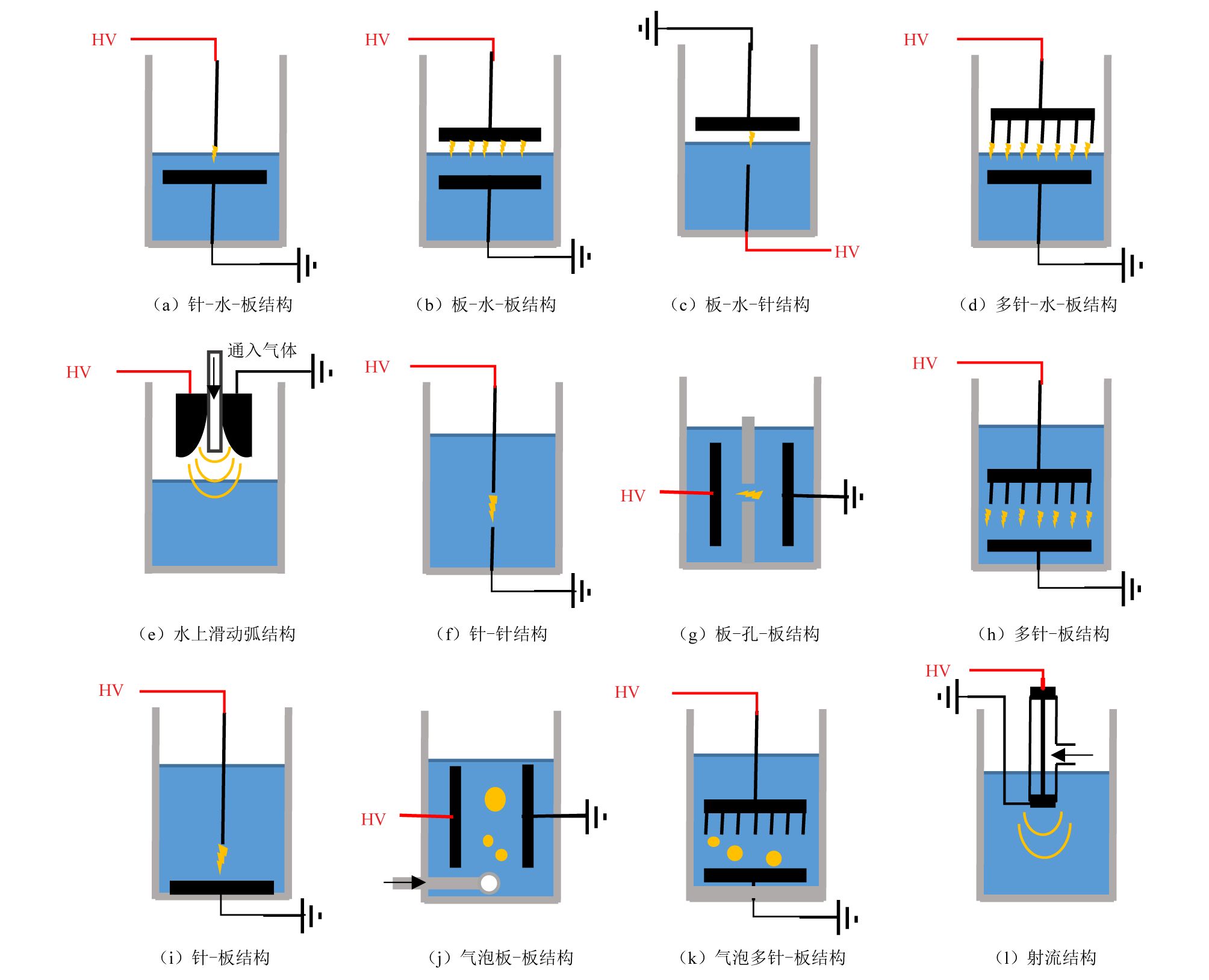

图 2 典型PAW产生装置

Figure 2. Typical setup of PAW generation

下载: 全尺寸图片幻灯片

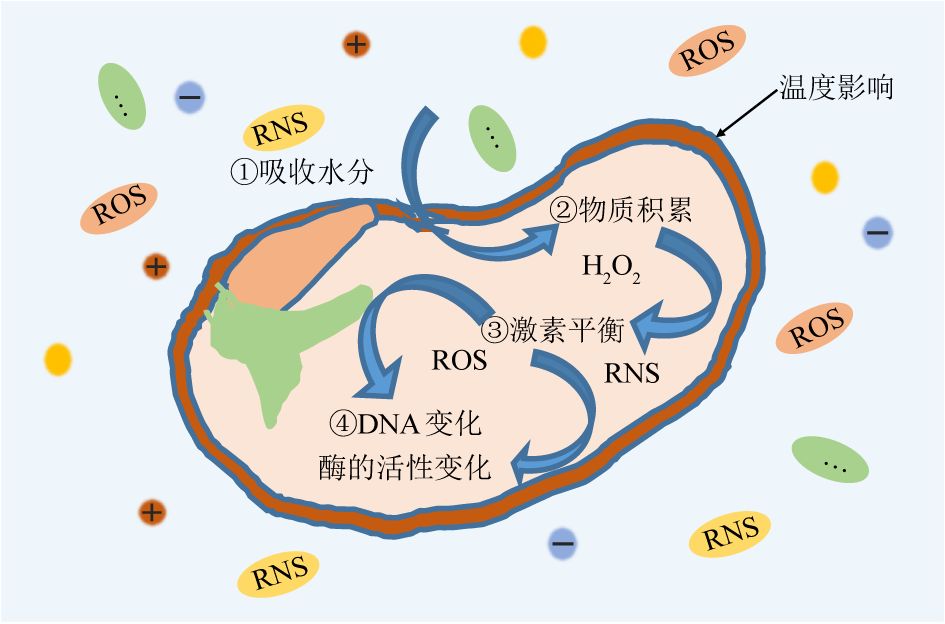

图 3 PAW打破种子休眠作用机理

Figure 3. Mechanism of paw breaking seed dormancy

下载: 全尺寸图片幻灯片

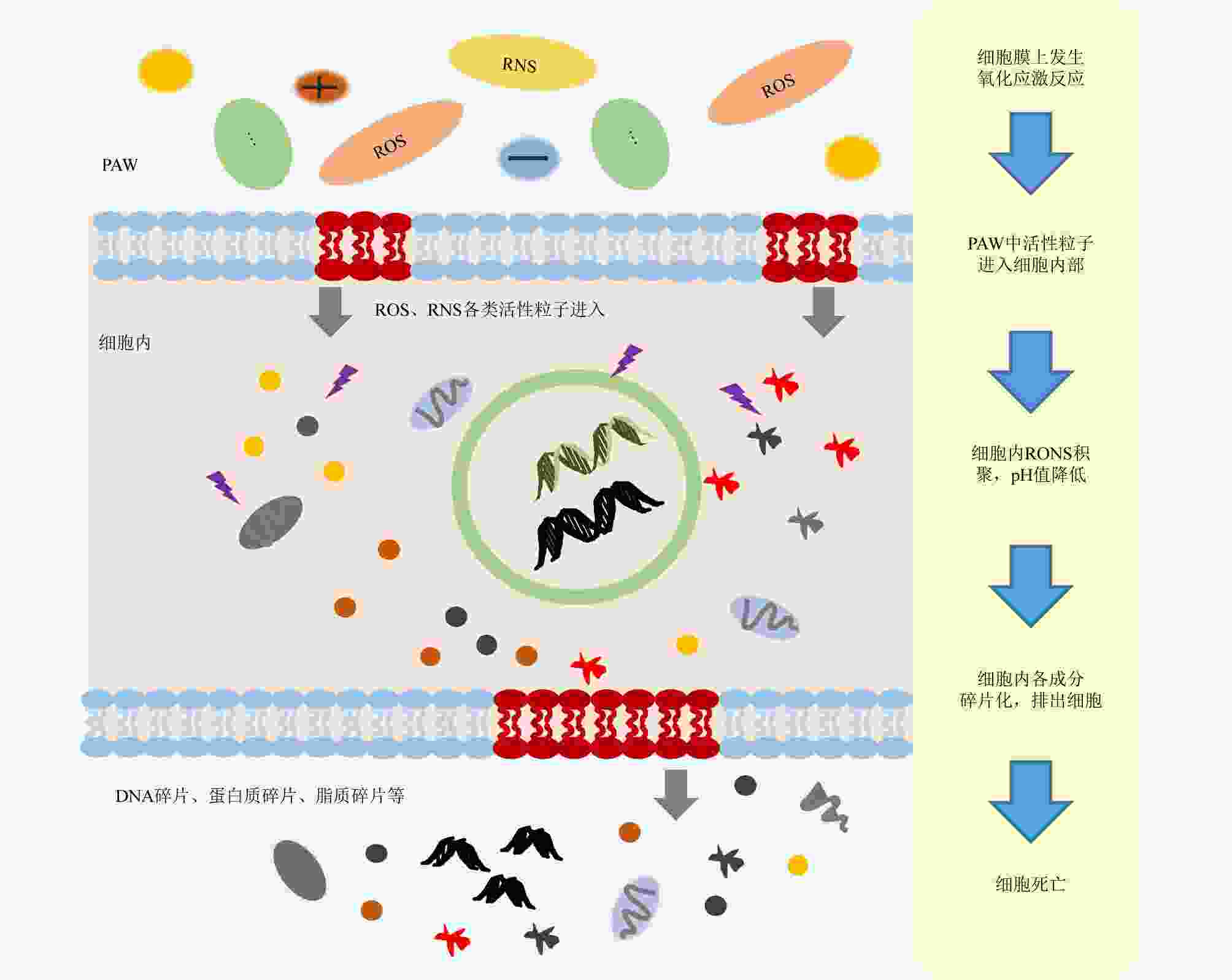

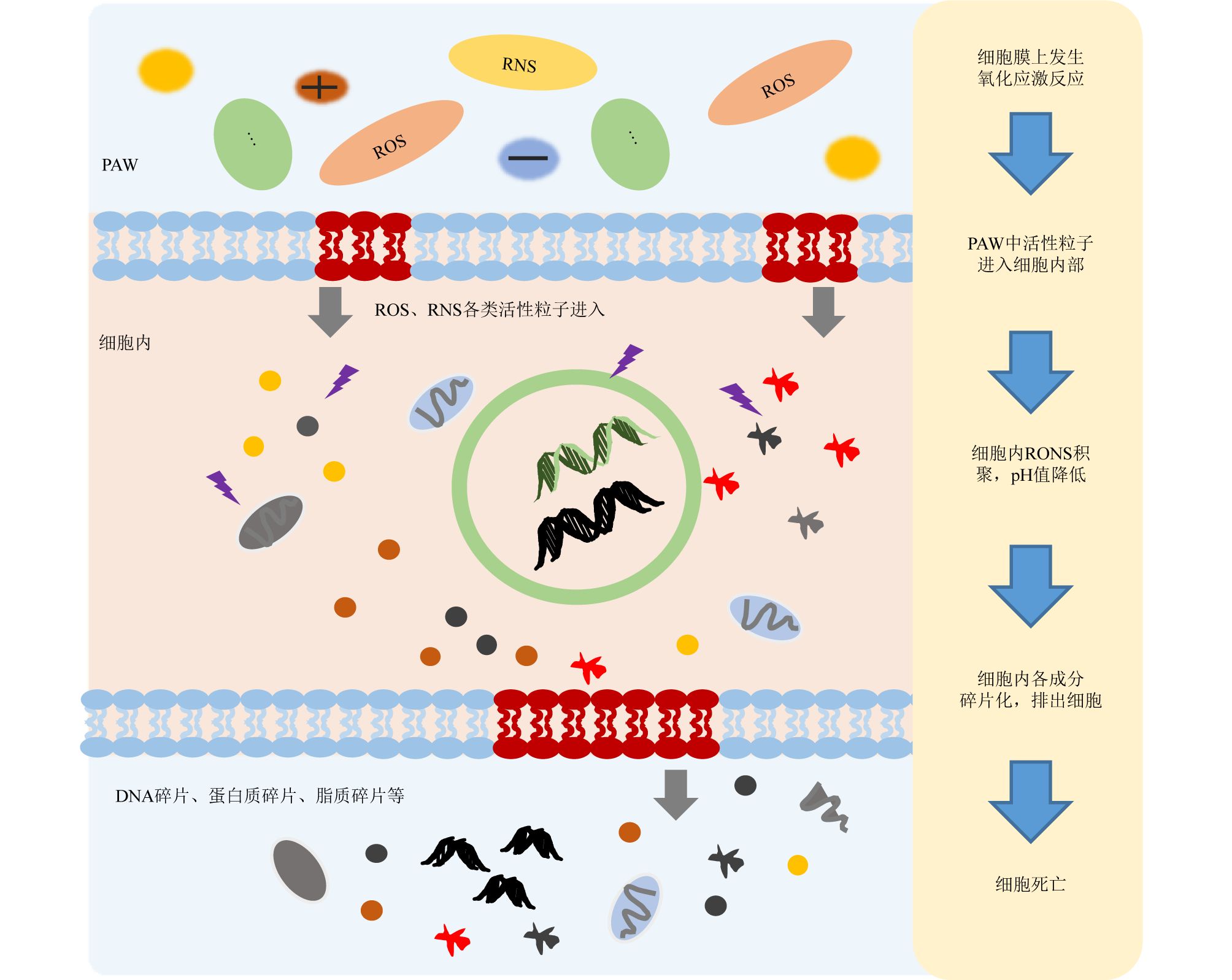

图 4 PAW种子表面消毒作用机理

Figure 4. Mechanism of disinfection on paw seed surface

下载: 全尺寸图片幻灯片

表 1 PAW产生过程中可能发生的反应方程式

Table 1. Reactions during generation of PAW

序号	方程式
1	N₂ + e⁻ → 2N + e⁻
2	N₂ + O → NO + N
3	O₂ + e⁻ → 2O + e⁻
4	O₂ + e⁻ → O⁺ +O + 2e⁻
5	O + N → NO
6	NO + O → NO₂
7	O + O₂ → O₃
8	NO + O₃ → NO₂ + O₂
9	O + H₂O → 2OH
10	O + H₂O → H₂O₂
11	H₂O + e⁻ → H₂O⁺ + 2e⁻
12	H₂O + e⁻ → OH·+ H·+ e⁻
13	H₂O + e⁻ → 2H·+ O·+ e⁻
14	H₂O + e⁻ → H⁺ + OH·+ 2e⁻
15	H₂O⁺ + H₂O → OH + H₃O⁺
16	N₂O + e⁻ → H₂O⁺ + 2e⁻
17	NO + NO → N₂ + O₂
18	N₂⁺ + H₂O → N₂ + H₂O⁺
19	·H +·HO₂ → H₂O₂
20	·OH +·OH → H₂O₂

下载: 导出CSV

参考文献(46)

[1]	邵长勇, 王德成, 张丽丽, 等．现代物理种业工程技术研究现状及发展趋势[J]．农机化研究, 2020, 42（8）: 1-5, 12． SHAO Changyong, WANG Decheng, ZHANG Lili, et al．Research status and development trend of modern physics seed industry engineering technology[J] Journal of Agricultural Mechanization Research, 2020, 42（8）: 1-5, 12．
[2]	ATTRI P, OKUMURA T, KOGA K, et al．Outcomes of pulsed electric fields and nonthermal plasma treatments on seed germination and protein functions[J]．Agronomy, 2022．DOI: 10.3390/AGRONOMY12020482．
[3]	PANKA D, JESKE M, ŁUKANOWSKI A, et al．Can cold plasma be used for boosting plant growth and plant protection in sustainable plant production?[J]．Agronomy, 2022．DOI: 10.3390/AGRONOMY12040841．
[4]	ŠIMEK M,HOMOLA T.Plasma-assisted agriculture:history,presence,and prospects:a review[J].The European Physical Journal D,2021,75(7):210. doi: 10.1140/epjd/s10053-021-00206-4
[5]	WANG Q,SALVI D.Recent progress in the application of plasma-activated water (PAW) for food decontamination[J].Current Opinion in Food Science,2021,42:51-60. doi: 10.1016/J.COFS.2021.04.012
[6]	戴栋,宁文军,邵涛.大气压低温等离子体的研究现状与发展趋势[J].电工技术学报,2017,32(20):1-9. doi: 10.19595/j.cnki.1000-6753.tces.170236 DAI Dong,NING Wenjun,SHAO Tao.A review on the state of art and future trends of atmospheric pressure low temperature plasmas[J].Transactions of China Electrotechnical Society,2017,32(20):1-9. doi: 10.19595/j.cnki.1000-6753.tces.170236
[7]	梅丹华,方志,邵涛.大气压低温等离子体特性与应用研究现状[J].中国电机工程学报,2020,40(4): 1339- 1358,1425. doi: 10.13334/J.0258-8013.PCSEE.191615 MEI Danhua,FANG Zhi,SHAO Tao.Recent progress on characteristics and applications of atmospheric pressure low temperature plasmas[J].Proceedings of the CSEE,2020,40(4): 1339- 1358,1425. doi: 10.13334/J.0258-8013.PCSEE.191615
[8]	ADAMOVICH I, AGARWAL S, AHEDO E, et al．The 2022 Plasma Roadmap: low temperature plasma science and technology[J]．Journal of Physics D: Applied Physics, 2022, 55（37）: 373 001．DOI: 10.1088/1361-6463/AC5E1C．
[9]	ATTRI P,ISHIKAWA K,OKUMURA T,et al.Plasma agriculture from laboratory to farm:a review[J].Processes,2020,8(8): 1002. doi: 10.3390/pr8081002
[10]	MILDAZIENE V,IVANKOV A,SERA B,et al.Biochemical and physiological plant processes affected by seed treatment with non-thermal plasma[J].Plants,2022,11(7):856. doi: 10.3390/PLANTS11070856
[11]	BAFOIL M,LE RU A,MERBAHI N,et al.New insights of low-temperature plasma effects on germination of three genotypes of Arabidopsis thaliana seeds under osmotic and saline stresses[J].Scientific Reports,2019,9(1): 8649. doi: 10.1038/s41598-019-44927-4
[12]	DE GROOT G J J B,HUNDT A,MURPHY A B,et al.Cold plasma treatment for cotton seed germination improvement[J].Scientific Reports,2018,8(1): 14372. doi: 10.1038/s41598-018-32692-9
[13]	ZAHORANOVÁ A,HOPPANOVÁ L,ŠIMONČICOVÁ J,et al.Effect of cold atmospheric pressure plasma on maize seeds:enhancement of seedlings growth and surface microorganisms inactivation[J].Plasma Chemistry and Plasma Processing,2018,38(5):969-988. doi: 10.1007/s11090-018-9913-3
[14]	KYZEK S,HOLUBOVÁ Ľ,MEDVECKÁ V,et al.Cold atmospheric pressure plasma can induce adaptive response in pea seeds[J].Plasma Chemistry and Plasma Processing,2019,39(2):475-486. doi: 10.1007/s11090-018-9951-x
[15]	MILDAŽIENĖ V,ALEKNAVIČIŪTĖ V,ŽŪKIENĖ R,et al.Treatment of common sunflower (Helianthus annus L. ) seeds with radio-frequency electromagnetic field and cold plasma induces changes in seed phytohormone balance,seedling development and leaf protein expression[J].Scientific Reports,2019,9(1): 6437. doi: 10.1038/s41598-019-42893-5
[16]	AMBRICO P F,ŠIMEK M,ROTOLO C,et al.Surface dielectric barrier discharge plasma:a suitable measure against fungal plant pathogens[J].Scientific Reports,2020,10(1): 3673. doi: 10.1038/s41598-020-60461-0
[17]	LIU C, CUI J, ZHANG D, et al．Decontamination of infected plant seeds utilizing atmospheric gliding arc discharge plasma treatment[J]．Plasma Science and Technology, 2021, 23（10）: 105 501．DOI: 10.1088/2058-6272/AC0E1F．
[18]	HU Xiao, ZHANG Yue, WU Ricardo Antonio, et al．Diagnostic analysis of reactive species in plasma-activated water （PAW）: current advances and outlooks[J]．Journal of Physics D: Applied Physics, 2022．DOI: 10.1088/1361-6463/AC286A．
[19]	邵涛,章程,王瑞雪,等.大气压脉冲气体放电与等离子体应用[J].高电压技术,2016,42(3):685-705. doi: 10.13336/j.1003-6520.hve.20160308018 SHAO Tao,ZHANG Cheng,WANG Ruixue,et al.Atmospheric-pressure pulsed gas discharge and pulsed plasma application[J].High Voltage Engineering,2016,42(3):685-705. doi: 10.13336/j.1003-6520.hve.20160308018
[20]	ZHOU Renwu, ZHOU Rusen, WANG Peiyu, et al．Plasma-activated water: generation, origin of reactive species and biological applications[J]．Journal of Physics D: Applied Physics, 2020, 53（30）: 303 001．DOI: 10.1088/1361-6463/ab81cf．
[21]	ZHOU R,ZHOU R,PRASAD K,et al.Cold atmospheric plasma activated water as a prospective disinfectant:the crucial role of peroxynitrite[J].Green Chemistry,2018,20(23): 5276- 5284. doi: 10.1039/C8GC02800A
[22]	杨波, 仲崇山, 王维洲, 等．等离子体活性水用于农业领域的研究进展[J]．农业工程, 2019, 9（2）: 101-107． YANG Bo, ZHONG Chongshan, WANG Weizhou, et al．Research progress of plasma activated water used in agriculture[J]．Agricultural Engineering, 2019, 9（2）: 101-107．
[23]	REZAEI F, VANRAES P, NIKIFOROV A, et al．Applications of plasma-liquid systems: a review[J]．Materials, 2019, 12（17）: 2 751．DOI: 10.3390/ma12172751．
[24]	HERIANTO S,HOU C,LIN C,et al.Nonthermal plasma-activated water:a comprehensive review of this new tool for enhanced food safety and quality[J].Comprehensive Reviews in Food Science and Food Safety,2021,20(1):583-626. doi: 10.1111/1541-4337.12667
[25]	PERINBAN S,ORSAT V,RAGHAVAN V.Nonthermal plasma-liquid interactions in food processing:a review[J].Comprehensive Reviews in Food Science and Food Safety,2019,18(4): 1985- 2008. doi: 10.1111/1541-4337.12503
[26]	ANPILOV A M,BARKHUDAROV E M,KOSSYI I A,et al.High-voltage pulsed discharge at the gas-liquid interface in a multiphase system[J].Technical Physics,2021,66(5):675-680. doi: 10.1134/S1063784221050029
[27]	ZHANG S,ROUSSEAU A,DUFOUR T.Promoting lentil germination and stem growth by plasma activated tap water,demineralized water and liquid fertilizer[J].RSC Advances,2017,7(50): 31244- 31251. doi: 10.1039/C7RA04663D
[28]	SMET C,GOVAERT M,KYRYLENKO A,et al.Inactivation of single strains of listeria monocytogenes and salmonella typhimurium planktonic cells biofilms with plasma activated liquids[J].Frontiers in Microbiology,2019,10: 1539. doi: 10.3389/fmicb.2019.01539
[29]	SHEN J,TIAN Y,LI Y,et al.Bactericidal effects against s. aureus and physicochemical properties of plasma activated water stored at different temperatures[J].Scientific Reports,2016,6(1): 28505. doi: 10.1038/srep28505
[30]	ZHAO Y,OJHA S,BURGESS C M,et al.Influence of various fish constituents on inactivation efficacy of plasma-activated water[J].International Journal of Food Science & Technology,2020,55(6): 2630- 2641.
[31]	XIANG Q,ZHANG R,FAN L,et al.Microbial inactivation and quality of grapes treated by plasma-activated water combined with mild heat[J].LWT - Food Science and Technology,2020,126: 109336. doi: 10.1016/j.lwt.2020.109336
[32]	刘慧娜, 张克亮, 赵大球, 等．种子休眠与萌发综述[J]．分子植物育种, 2020, 18（2）: 621-627． LIU Huina, ZHANG Keliang, ZHAO Daqiu, et al．Advances in studies of seed dormancy and germination[J]．Molecular Plant Breeding, 2020, 18（2）: 621-627．
[33]	邓本良.活性氧调控作物种子发芽机理的研究进展[J].安徽农业科学,2020,48(13):21- 22,26. doi: 10.3969/j.issn.0517-6611.2020.13.006 DENG Benliang.Research advances of reactive oxygen species in regulating crop seed germination[J].Journal of Anhui Agricultural Sciences,2020,48(13):21- 22,26. doi: 10.3969/j.issn.0517-6611.2020.13.006
[34]	GURAGAIN R P, PRADHAN S P, BANIYA H B, et al．Impact of plasma-activated water （PAW） on seed germination of soybean[J]．Journal of Chemistry, 2021．DOI: 10.1155/2021/7517052．
[35]	RASHID M,RASHID M M,REZA M A,et al.Combined effects of air plasma seed treatment and foliar application of plasma activated water on enhanced paddy plant growth and yield[J].Plasma Chemistry and Plasma Processing,2021,41(4): 1081- 1099. doi: 10.1007/s11090-021-10179-2
[36]	ISLAM S,OMAR F B,SAJIB S A,et al.Effects of LPDBD plasma and plasma activated water on germination and growth in rapeseed (Brassica napus)[J].Gesunde Pflanzen,2019,71(3):175-185. doi: 10.1007/s10343-019-00463-9
[37]	SAJIB S A,BILLAH M,MAHMUD S,et al.Plasma activated water:the next generation eco-friendly stimulant for enhancing plant seed germination,vigor and increased enzyme activity,a study on black gram (Vigna mungo L. )[J].Plasma Chemistry and Plasma Processing,2020,40(1):119-143. doi: 10.1007/s11090-019-10028-3
[38]	SIVACHANDIRAN L,KHACEF A.Enhanced seed germination and plant growth by atmospheric pressure cold air plasma:combined effect of seed and water treatment[J].RSC Advances,2017,7(4): 1822- 1832. doi: 10.1039/C6RA24762H
[39]	GUO LI,XU RUOBING,GOU LU,et al.Mechanism of virus inactivation by cold atmospheric-pressure plasma and plasma-activated water[J].Applied and Environmental Microbiology,2018,84(17):e00726-18.
[40]	SUWAL S,CORONEL-AGUILERA C P,AUER J,et al.Mechanism characterization of bacterial inactivation of atmospheric air plasma gas and activated water using bioluminescence technology[J].Innovative Food Science & Emerging Technologies,2019,53:18-25.
[41]	DARMANIN M, FRÖHLING A, BUßLER S, et al．Aqueous and gaseous plasma applications for the treatment of mung bean seeds[J]． Scientific Reports, 2021, 11（1）: 19 681．DOI: 1 0.1038/S41598-021-97823-1．
[42]	CHEN D, CHEN P, CHENG Y, et al．Deoxynivalenol decontamination in raw and germinating barley treated by plasma-activated water and intense pulsed light[J]．Food and Bioprocess Technology, 2019, 12（2）: 246-254．
[43]	MACHADO-MOREIRA B, TIWARI B K, RICHARDS K G, et al． Application of plasma activated water for decontamination of alfalfa and mung bean seeds[J]．Food Microbiology, 2021, 96: 103 708．DOI: 10.1016/J.FM.2020.103708.
[44]	XIANG Q,LIU X,LIU S,et al.Effect of plasma-activated water on microbial quality and physicochemical characteristics of mung bean sprouts[J].Innovative Food Science & Emerging Technologies,2019,52:49-56.
[45]	MUHAMMAD A I, CHEN W, LIAO X, et al．Effects of plasma-activated water and blanching on microbial and physicochemical properties of tiger nuts[J]．Food and Bioprocess Technology, 2019, 12（10）: 1 721-1 732．
[46]	LO PORTO C,ZIUZINA D,LOS A,et al.Plasma activated water and airborne ultrasound treatments for enhanced germination and growth of soybean[J].Innovative Food Science & Emerging Technologies,2018,49:13-19.
